kmyled.geloPendant LED luminaire Project
Time：2019-07-10source：assistenciatecnicaconserto.comBrowsing times：

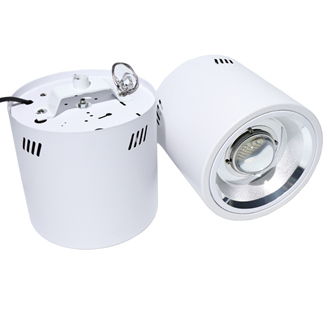

KW-SH 150W LED Pendant Cylinder downlight for high ceiling space illumination.Installation through the top, with easy access to install components. Luminaire manufactured in iron housing and aluminium alloy heat sink.Housing epoxy/polyester powder coated paint finish in Black color,white color as standard. Other color can be customized.

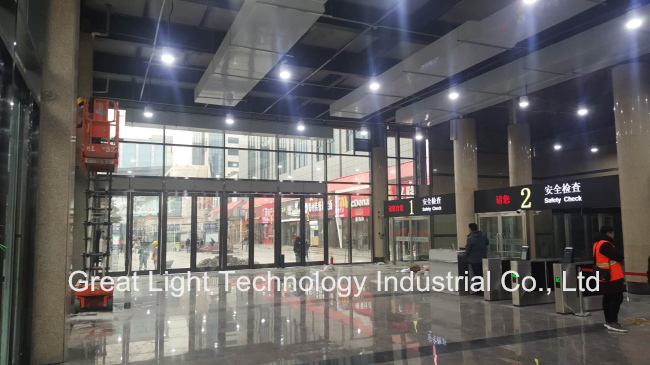

The 150W Pendant LED Downlight application in the Railway station which install height 13m height ,the average illumination is 165lux,meet the China latest standard of illumination of the Ministry of Railways hall lighting .
Following is the specification of 150W LED Downlight luminaire for Henan railway station.
|
Model:KW-SH150W Brand:TengSeaKai騰斯凱 Power:150W LED Chips :48PCS CREE high power 5 watt led chips LED Driver:Meanwell ELG Input Voltage:AC100V-277V 50/60Hz Power Factor:>0.95 Beam Angle:90 degree Lumen:14250lm (CCT:4900K) Dimmable:Non Installation:Pendant+1m safe rope Dimension:220*219mm Weight:2kg Housing Color:White |
 |
